Find 6 Inch to 8 Inch Lift Kits for your Ram 3500

Fabtech 7-Inch Radius Arm Suspension Lift Kit with Coil Springs and Dirt Logic Shocks (13-18 4WD 6.7L RAM 3500 SRW w/o Air Ride)Find parts that fit my vehicle

Item SHR7896
Product Image
Fabtech 7-Inch Radius Arm Suspension Lift Kit with Coil Springs and Dirt Logic Shocks (13-18 4WD 6.7L RAM 3500 SRW w/o Air Ride)
Verify parts fit and get product recommendations.
Ram 3500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 4.7 Fabtech Suspension product ratings
Our Price

$3,846.46 kit

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Radius Arm Suspension Lift Kit
      • Seven Inches
      • Front Straight Coil Springs
      • Dirt Logic Shocks
      • Front Angled Spring Mounts
      • Front and Rear Steel Bump Stop Extensions
      • Front Track Bar Bracket
      • Pitman Arm
      • Rear Block and U-Bolt Kit
      • Fits 38-Inch Tires
      • Difficult Installation
      • Limited Lifetime Warranty
      • Fits 2013-2018 4WD 6.7L RAM 3500 SRW Models Without Air Ride

      Description

      Handle Much More. This Fabtech 7-Inch Radius Arm Suspension Lift Kit with Coil Springs and Dirt Logic Shocks will give your RAM 3500 a smoother ride, even if you're heading out to the trails. You can handle heavier loads with this kit.

      Coil Springs. These front coil springs have a straight spring design and angled lower mounts. The straight design means a lower spring rate, but keeps the factory carrying capacity. You'll immediately notice a ride quality improvement.

      Shocks. These Dirt Logic Shocks have a 2.25-inch OD stainless steel body with a 2-inch OD billet aluminum piston and 7/8-inch NitroSteel black piston rod. The front resi shocks have a 2.25-inch OD aluminum reservoir with a stainless steel O-ring hose.

      Other Parts. There are 2 Fabtech Radius Arms, front and rear steel bump stop extensions, front track bar bracket, a pitman arm and rear block & U-bolt kit.

      Installation. Putting this in your truck is challenging and should take a day to install.

      Warranty. There is a limited lifetime warranty on this product.

      Application. This Fabtech 7-Inch Radius Arm Suspension Lift Kit fits 2013-2018 4WD 6.7L RAM 3500 SRW models without Air Ride.

      Fitment:

      Details

      Fabtech K3147DL

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

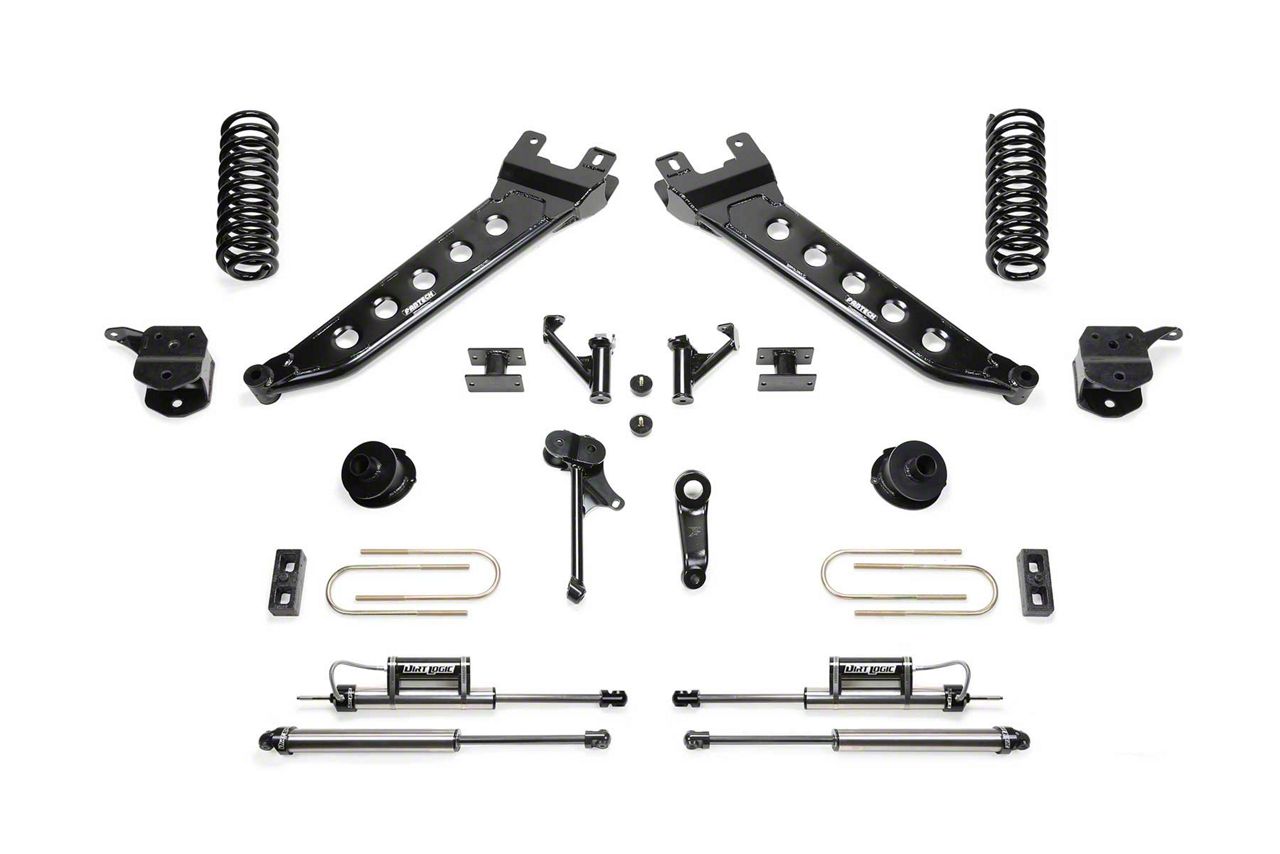

      What's in the Box

      • (2) Radius Arms
      • (2) Radius Arm Drops
      • (1) Track Bar Bracket
      • (2) Lowering Spring Perches
      • (2) Front Coil Springs
      • (2) Bump Stop Mounts
      • (2) Sway Bar Drops
      • (1) Pitman Arm
      • (2) Rear Bump Stop Spacers
      • (2) Rear Blocks
      • (4) U-Bolts
      • (4) Shocks
      • Installation Hardware
      4.7

      Reviews of Fabtech Suspension Products (47)

      Brand Image

      Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 6.7L I6 - 13, 14, 15, 16, 17, 18
