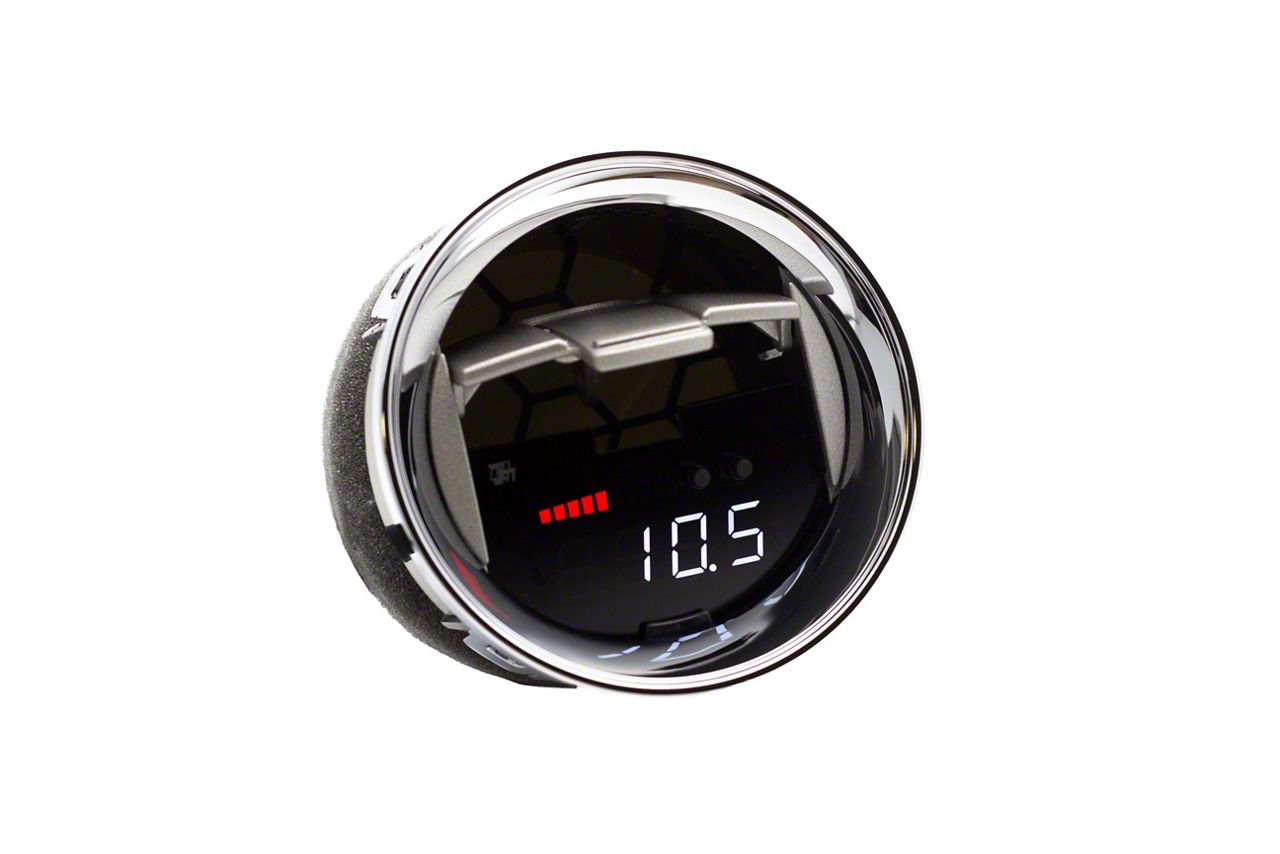

Analog Gauge without Vent Housing; Red Bars/White Digits (09-14 F-150)Find parts that fit my vehicle
Item T598134
F-150 Sales Tech
Verify parts fit & get product recommendations
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Analog Gauge
- Does not have a Vent Housing
- Has Red Bars with White Digits
- Polished Chrome Finish
- Integrated Display has 4 Analog Readouts – Boost (Yellow/Purple/Black Plug), Input 1 (Brown Wire – 0-5 Volt Linear Output), Input 2 (Blue Wire – 0-5 Volt Linear Output), and Battery Voltage (Red and Black Wire)
- Optional Auto-Dim Feature When the Green Wire Is Connected to Circuits that Turn On Only When the Headlights are On
- Direct Replacement
- Comes in Singles
- Fits 2009-2014 Ford F-150 Models
Description
Multi-Function Analog Monitoring. This Analog Gauge is a versatile monitoring solution designed to provide clear and immediate data for critical vehicle parameters. Engineered to enhance your F-150’s diagnostic capabilities, this gauge integrates four analog readouts in a sleek display — Boost, Input 1, Input 2, and Battery Voltage — helping drivers stay on top of their vehicle’s performance in real time. Ideal for enthusiasts and performance tuners, it ensures precise monitoring during both daily driving and spirited use.
Construction and Appearance. Featuring a polished chrome finish, this analog gauge offers a bold and stylish look that stands out in the cabin. The display uses red bars paired with white digits for easy readability under various lighting conditions. Designed without a vent housing, it offers a clean, stand-alone installation and integrates seamlessly into a wide range of interior setups.
Installation. Designed for adaptable installation, this gauge serves as a direct replacement and includes clearly marked wiring connections for quick setup. The optional auto-dim feature adds convenience by adjusting display brightness when the green wire is connected to headlight-powered circuits. This feature enhances nighttime visibility without distraction.
Application. This Analog Gauge fits 2009-2014 Ford F-150 Models. It’s a highly functional and stylish upgrade that gives drivers the tools to monitor engine performance, voltage levels, and custom sensor inputs with precision and ease.
Fitment:
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Gauge
