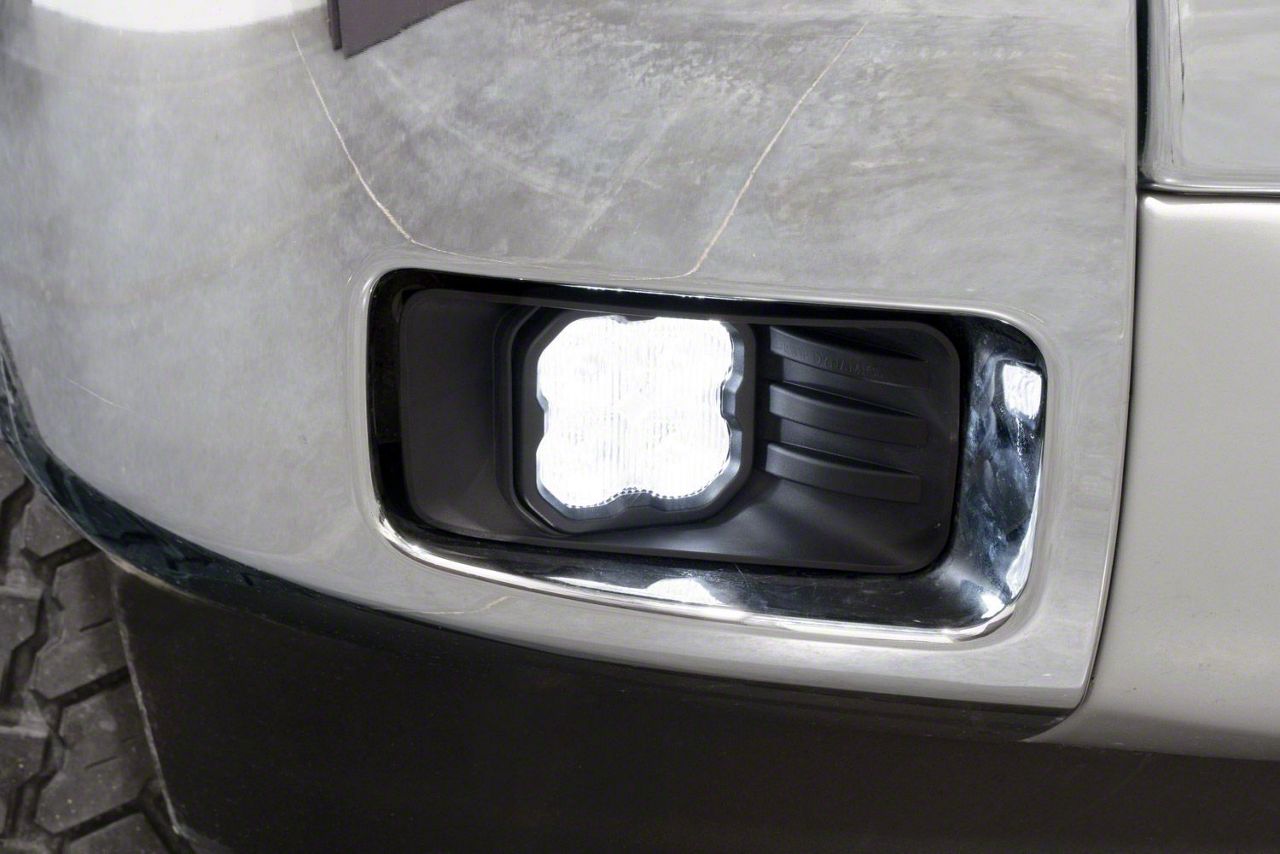

Diode Dynamics SS3 Max ABL Type CH LED Fog Light Kit; White SAE Fog (07-15 Silverado 1500)Find parts that fit my vehicle

Description. Features

Direct replacement for Chevrolet Silverado fog lamps

SAE-compliant road-legal output

Includes one-piece molded bezel, for factory-style appearance

Plug and play, no modification needed

Advanced TIR optics provide high efficiency and focus

Durable powdercoated aluminum die-cast

Engineered and Assembled in USA

Overview

Overview. Upgrade the fog lights on your Chevrolet Silverado with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included one-piece molded bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your Chevrolet Silverado in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

SS3 Beam Patterns

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function. NOTE: If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a 2-pin to 4-pin wire tap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

White or Yellow. All Stage Series LED pods are available in a

Fitment:

• 2007 Chevrolet Silverado 1500
• 2008 Chevrolet Silverado 1500
• 2009 Chevrolet Silverado 1500
• 2010 Chevrolet Silverado 1500
• 2011 Chevrolet Silverado 1500
• 2012 Chevrolet Silverado 1500
• 2013 Chevrolet Silverado 1500
• 2014 Chevrolet Silverado 1500
• 2015 Chevrolet Silverado 1500
