Diode Dynamics SS3 Max LED Fog Light Kit; Yellow Fog (17-20 F-150 Raptor)Find parts that fit my vehicle

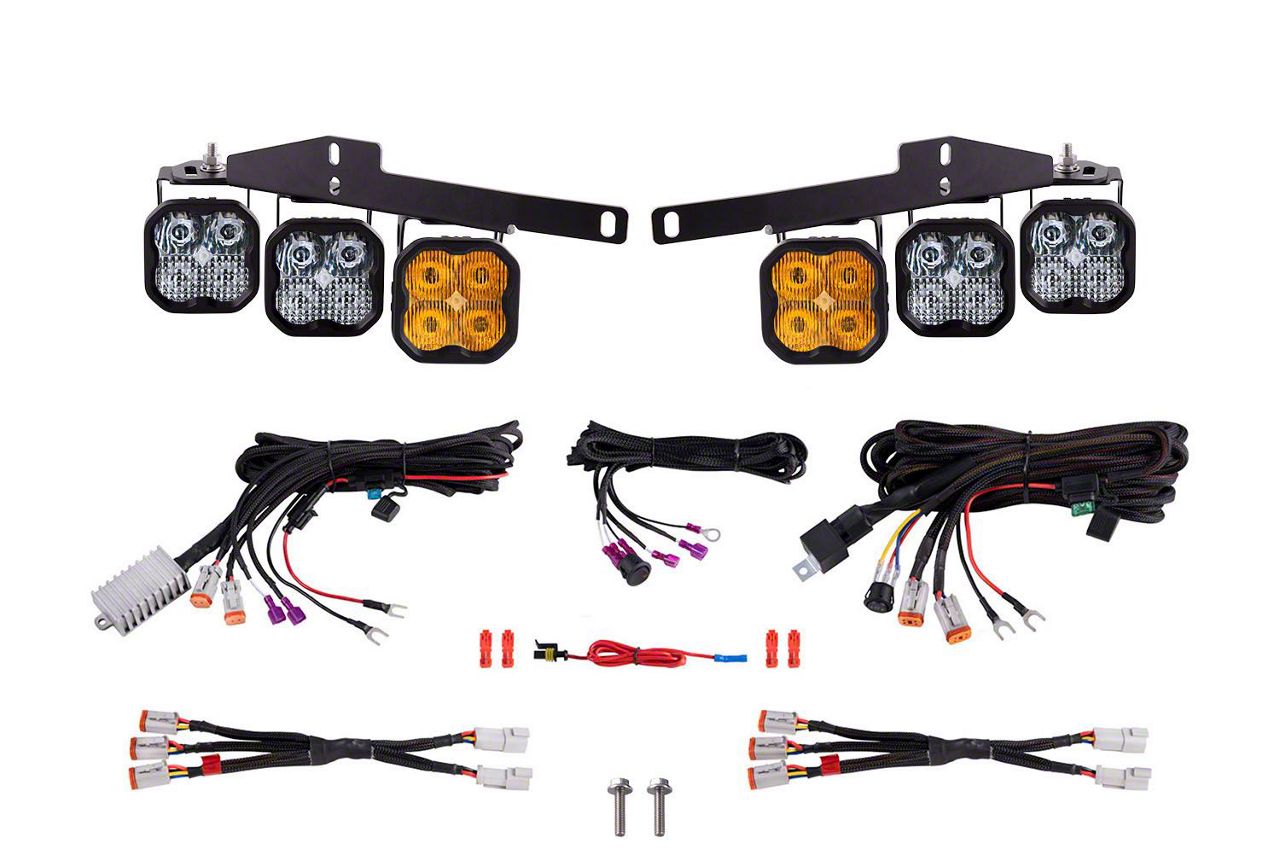

Description. Overview. If you are looking to add some serious functionality to your Raptor, look no further! The SS3 Fog Light Kit for the 2017+ Ford Raptor from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount six SS3 LED Pods factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

Lighting for Every Situation. This kit includes six total SS3 LED Pods: two SAE Fog, and four Combo. This combination provides ideal light output whether you are on or offroad!

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your truck.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature that can be controlled separately using the factory aux switches. The backlight on each pod included with the kit fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

White or Yellow Fog. The SS3 Fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SS3 offroad pods in both options are 6000K cool white.

Sport, Pro, or Max. This kit is available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model features our SS3 Max LED pods, which have been designed with cutting-edge automotive emitters for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information or click here.

Separate Switches. With the included harnesses, the two SS3 Fog pods and four SS3 offroad pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. This kit was designed to allow the SS3 Fog pods to operate in the same way factory-installed fog lights do, automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Warranty. 8 year warranty

Fitment:

• 2017 Ford F-150
• 2018 Ford F-150
• 2019 Ford F-150
• 2020 Ford F-150
