Find Tuners for your Silverado 1500
Diablosport Pulsar LT and Trinity 2 MX Kit (19-22 V8 Silverado 1500)Find parts that fit my vehicle
Item S146813
Silverado 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$1,004.36
2 Reviews
On Sale
-10% $1,004.36 kit Was $1,115.95
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Pulsar LT Inline Control Module and Trinity 2 Monitor Combo
- Corrects Speedometer for Tire/Gear Changes
- Adjust Throttle Response
- Reprogram TPMS Threshold
- Monitors Critical Systems
- Performance Tests, Alerts and Records
- Diagnostic Scan Tool - Reads and Clears DTC Trouble Codes
- Five Inch Capacitive Touch Screen
- Customize Gauge Layouts and Backgrounds
- Not Compatible with 2022.5+ 'Refresh' Models
- Fits 2019-2022 V8 Chevrolet Silverado 1500 Models
Description
DiabloSport Combo Kit . The Pulsar LT Inline Control Module and Trinity 2 Monitor Combo Kit is a great way to get more out of your V8 Silverado without the need of a custom tune. The Pulsar LT offers you the ability to adjust throttle response, tire size, gear ratio, TPMS, and your top speed limiter all from your steering wheel controls. While the included Trinity 2 Monitor will allow you to monitor all your Silverado's critical systems.
Adjust Throttle Response. The Pulsar LT Inline Control Module allows you to adjust your vehicles throttle response to fit your driving needs. All modern vehicles use a drive-by-wire system that controls the throttle body electronically, similar to a dimmer switch. With the Pulsar LT Inline Control Module installed you can reduce throttle responsiveness by 15% or increase its responsiveness by up to 65%.
Corrects Speedometer / Odometer. If you have installed a set of tires that are larger or smaller than original equipment tires, or if you have installed a ring and pinion gear set with a different gear ratio, the Pulsar LT Inline Control Module allows you to correct your speedometer and odometer readings. The vehicle’s computer calculates your speed based on the diameter of the stock tires. If you’ve installed taller or shorter tires, or changed the rear gear ratio, the vehicle’s computer doesn’t know how fast your vehicle is actually going. As a result, the speedometer/odometer readings will not be accurate.
Speed Limiter. The Pulsar LT Inline Control Module allows the speed limiter to be adjusted between 82 and 140 MPH.
TPMS - Tire Pressure Monitor System. The Pulsar LT Inline Control Module allows the TPMS inflation value to be adjusted between 25 and 99 (PSI).
Trinity 2 Monitor. The Diablosport Trinity 2 Monitor allows you to read data directly from your OBD-II diagnostic port in real time to accurately monitor up to eight of your vehicles critical systems at the same time. The virtual gauges can be easily switched between US or Metric. With a full color, 5-inch, easy to read, capacitive touch screen with auto-dimming, the Trinity 2 features highly customizable gauges and backgrounds.
Data Logging. The robust data logging feature of the Trinity 2 Gauge Monitor makes it easy to create an accurate, comprehensive picture of your vehicle's condition, allowing you to make in-depth evaluation of your engines performance. The Trinity 2 Gauge Monitor can store hours of data in up to 10 unique logs straight from your vehicle's PCM/ECM.
Diagnostic Scan Tool. The Trinity 2 Monitor can also be used as a diagnostic scan tool code reader. Save yourself time and money by reading and clearing your own trouble codes rather than paying a dealer to do the same. Its as easy as a few simple steps.
Performance Testing, Alerts and Records. Performance and record 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
Internet Updateable. Both the Pulsar LT Inline Control Module and Trinity 2 Monitor can quickly updated over the internet. It is recommended to update both to ensure you have the latest software updates and calibration files before installation. Free updates are available at www.edgeproducts.com/updates.
Vehicle Parameters (PIDs) - * Not all Vehicle Parameters available on all vehicles.
- ACC Pedal Position
- Barometric Pressure
- Battery Voltage
- Cylinder Head Temperature
- Engine Coolant Temperature
- Engine Load
- Intake Air Temperature
- Kck Sensor 1
- Kck Sensor 2
- Engine RPM
- Manifold ABS Pressure
- Mileage Coach
- Mileage Average
- Mileage Instant
- Run Time
- Spark Advance
- TCC Soleid Pressure
- Transmission Fluid Temperature
- Trip Odometer
- Turbo Boost
- Variable CAM
- Vehicle Speed
Application. This Diablosport Pulsar LT and Trinity 2 MX Kit is designed to fit 2019-2022 V8 Chevrolet Silverado 1500 models. Not compatible with 2022.5+ 'Refresh' models.
Fitment:
- 2019 Chevrolet Silverado 1500
- 2020 Chevrolet Silverado 1500
- 2021 Chevrolet Silverado 1500
- 2022 Chevrolet Silverado 1500
Diablosport 23451-MX
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

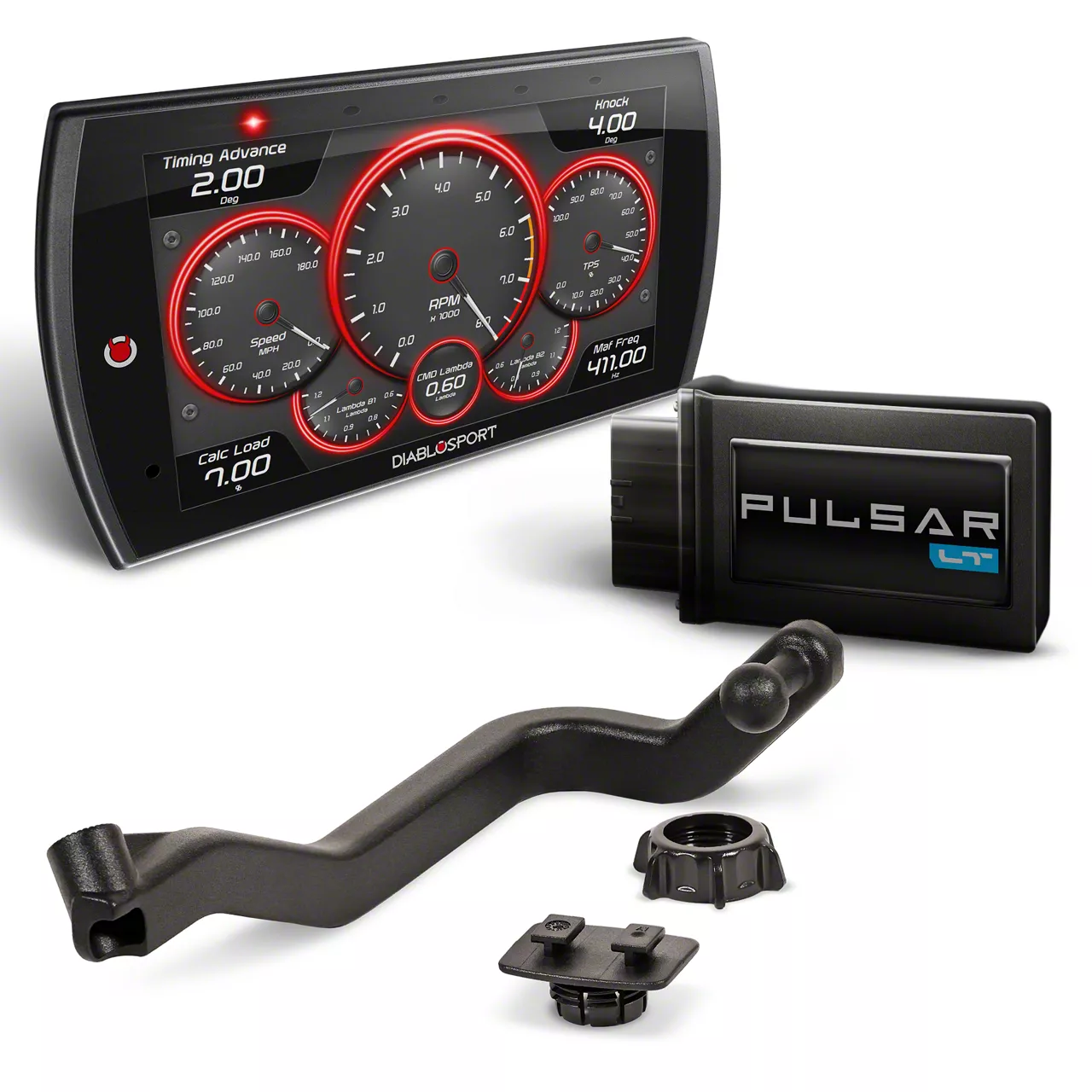

What's in the Box
- Pulsar LT Module
- Trinity 2 Monitor
- Cables
- Dash Mount
5.0
Customer Reviews (2)
Reviews of Diablosport Tuner products have an average rating of 4.7 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Silverado 1500
- 5.3L V8 - 19, 20, 21, 22
- 6.2L V8 - 19, 20, 21, 22
