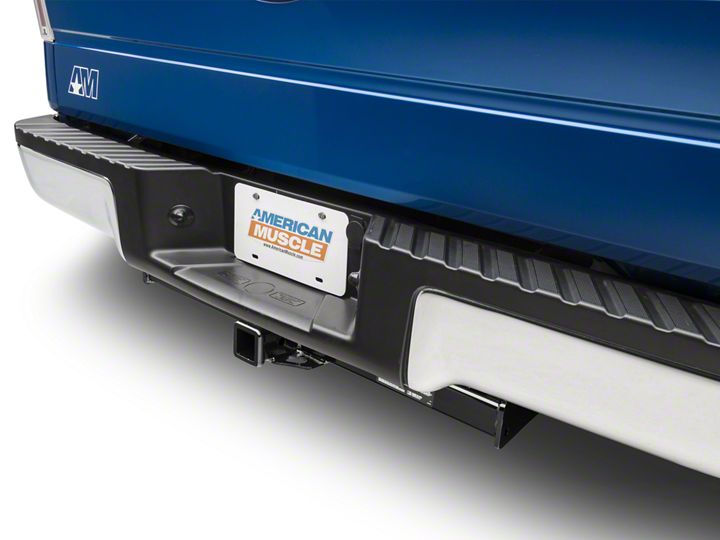

How to Install Curt Manufacturing Class IV Trailer Hitch on your F-150

Installation Time

1 hours

Tools Required
  • 3/4" WRENCH
  • 3/4" SOCKET
  • RATCHET
  • TORQUE WRENCH
View PDF Guide
American Muscle
Shop Parts in this Guide


INSTALLATION STEPS

Note: Removal of the spare tire may ease hitch installation, although it is not necessary.


1. Raise hitch into position and fasten the hitch to the bumper brackets using the main body straps as shown.


2. Attach remaining fasteners as shown, placing (2) 9/16" washers inside the access hole in the bumper bracket on each side. Use the hitch and CM-SP16 spacer to retain the washers.


3. Torque all fasteners to 110 lb-ft.


4. Reinstall spare tire if it was removed for hitch installation. Make sure the spare tire does not contact the bolts.

PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
