Comp Cams Conical Valve Springs with Chromemoly Retainers; 0.660-Inch Max Lift (09-24 5.7L, 6.4L RAM 3500)Find parts that fit my vehicle

Item SHR28495
Product Image
Comp Cams Conical Valve Springs with Chromemoly Retainers; 0.660-Inch Max Lift (09-24 5.7L, 6.4L RAM 3500)
Verify parts fit and get product recommendations.
Ram 3500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-888-706-1096 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 5.0 Comp Cams Engine product ratings
Our Price

$594.95

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Conical Valve Spring Kit
      • Upgraded Spring Performance for Competition-Level Applications
      • Boosted Stability in High RPM Situations
      • Natural Damping Properties for a Long Service Life
      • Works with More Aggressive Cams
      • Max Lift of 0.660 Inches
      • Conical Design
      • Rugged Steel Construction
      • Includes Chromemoly Retainers
      • Natural Finish
      • Professional Installation Recommended
      • Sold as a Kit
      • Fits All 2009-2024 5.7L and 6.4L RAM 3500 Models

      Description

      Specialized Design for Upgraded Performance. If you’re thinking of swapping out your HEMI’s valve springs to upgrade performance, then these Comp Cams Conical Valve Springs with Chromemoly Retainers; 0.660-Inch Max Lift are the way to go. These valve springs feature a unique conical form that's designed to naturally dampen their unnecessary frequencies which could lead to failure. Additionally, these components deliver up to 0.660 inches of max lift. These factors make these springs ideal for use in high RPM situations as well as when running more aggressive cams.

      Rugged Build Quality. These valve springs are built from high-quality spring steel offering superior wear resistance. Also, these springs are machine-formed and provide a spring rate of 519 pounds/inch and seat pressure of 145 pounds. Their retainers meanwhile are crafted from high-grade chromemoly, making them extremely durable. Rounding out their construction is a natural finish.

      Professional Installation Recommended. Installation of these valve springs and retainers will require the removal of your HEMI’s valve cover and related components. A full set and some specialized tools as well as extensive mechanical knowledge are also ideal to ensure their proper installation. If you’re not used to this type of procedure, professional installation is recommended.

      Application. The Comp Cams Conical Valve Springs with Chromemoly Retainers; 0.660-Inch Max Lift will fit all 2009-2024 5.7L and 6.4L RAM 3500 models.

      Fitment:

      Details

      Comp Cams 7230CC-KIT

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

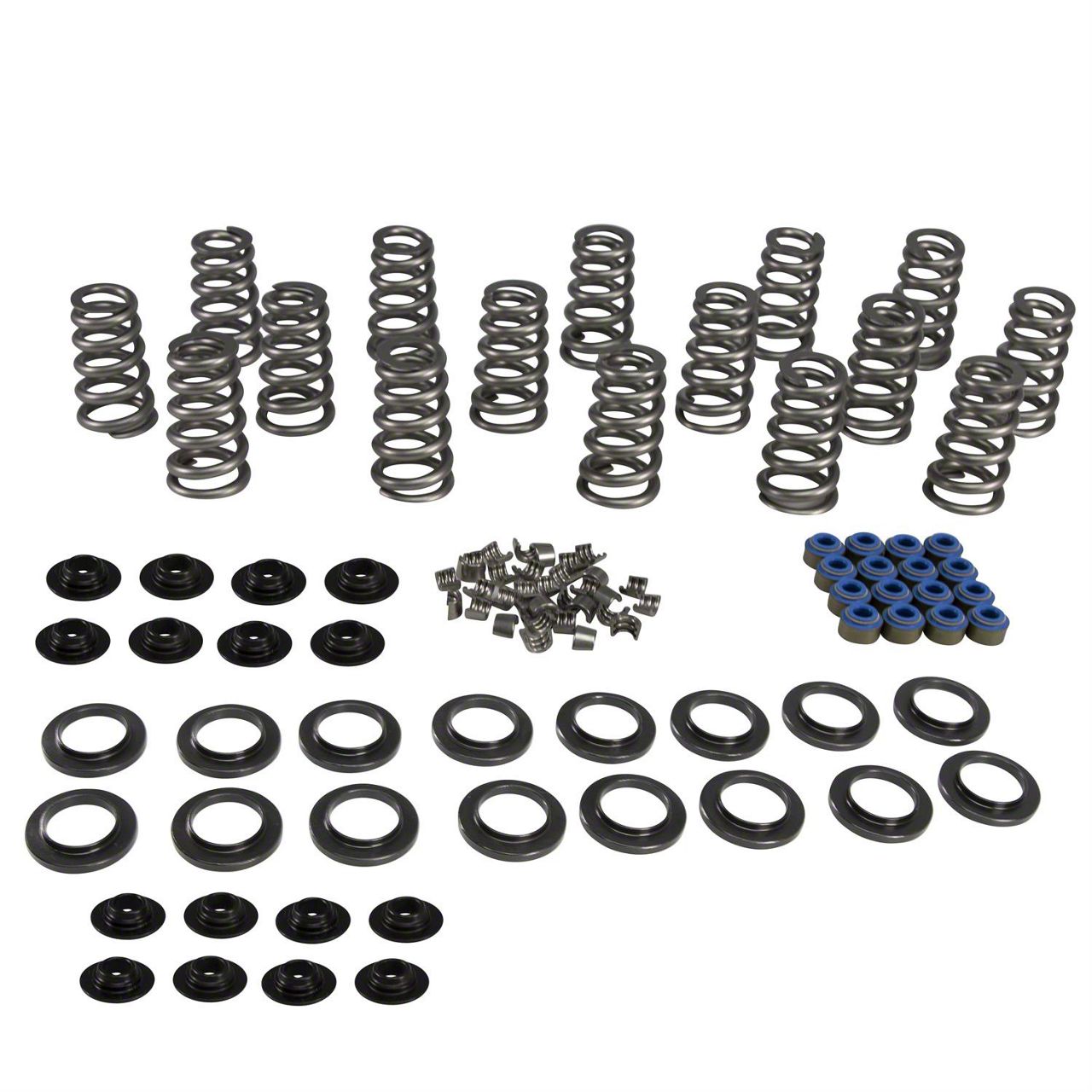

      What's in the Box

      • (16) Valve Springs
      • (16) Chromemoly Valve Spring Retainers
      • (16) Valve Spring Locks
      • (16) Valve Spring Seals
      • (16) Valve Spring Seats
      5.0

      Reviews of Comp Cams Engine Products (3)

      Brand Image

      Reviews of Comp Cams Engine products have an average rating of 5 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 5.7L V8 - 09, 11, 12, 13, 14, 15, 16, 17, 18
      • 6.4L V8 - 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
