Find Engine Components for your F-150

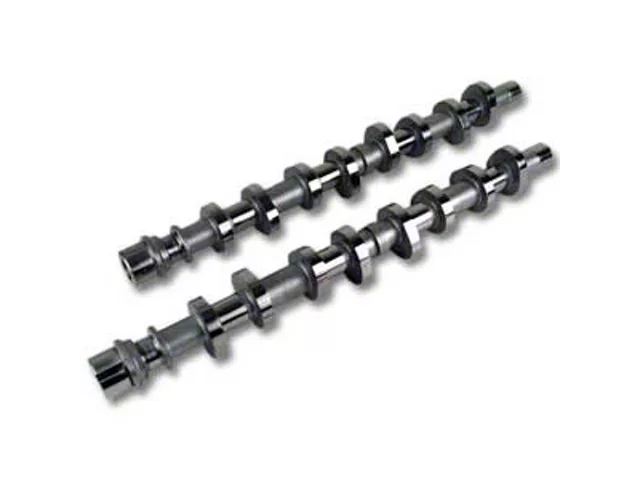

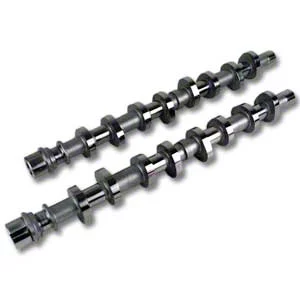

Comp Cams Stage 3 Xtreme Energy 234/238 Hydraulic Roller Camshafts (97-10 4.6L 2V F-150 w/ PI Heads; 97-03 5.4L F-150 w/ PI Heads)Find parts that fit my vehicle
Item T585249
$0.00
Our Price
$798.95
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Great Mid-Range Gains
- Big Loping Idle
- Strong Vacuum
- Streetable Cam Design
- Designed for Performance Improvement (PI) Heads
- Fits 1997-2010 4.6L 2-Valve (2V) and 1997-2003 5.4L F-150s
Description
Big Power Gains. If you're ready to take the next step in power mods but don't want to go with a forced-induction setup, Comp Cams Stage III Xtreme Energy Camshafts are a great addition to your truck. They will give you great mid-range power gains in horsepower and torque. They are best suited to F-150s with Performance Improvement Heads.
Streetable. This cam balances an aggressive profile with street driveability. When tuned, you'll still be able to drive your truck around town to show it off to your admiring (or envious) friends and onlookers alike - and with a big sound even at idle this cam is guaranteed to turn heads.
Deep, Loping Idle. If you love the sound of a deep, loping idle, you won't be disappointed by this cam. Like the muscle cars of yesteryear, this cam yields a sound that will make lesser cars clear a path out of your way at lights.
Adjustable Cam Gears. Maximize the power from your new camshafts with a set of Adjustable Cam Gears, which will allow you the ability to fine tune your camshaft timing - a critical necessity when doing mods that can change your camshaft-to-crankshaft centerline position. Please see drop down option above.
Application. These Comp Cams Stage 3 Xtreme Energy XE270AH Camshafts are designed to be used on the 1997-2010 4.6L 2-Valve (2V) and 1997-2003 5.4L F-150s that are equipped with Performance Improvement (PI) Heads, 3.55 or steeper rear gears and a 2000 plus stall speed converter on automatic transmissions. Recommended for use with 4.6 two valve V8 F-150s with intake, exhaust, custom tuned computer, and valve spring upgrades.
Streetable. This cam balances an aggressive profile with street driveability. When tuned, you'll still be able to drive your truck around town to show it off to your admiring (or envious) friends and onlookers alike - and with a big sound even at idle this cam is guaranteed to turn heads.
Deep, Loping Idle. If you love the sound of a deep, loping idle, you won't be disappointed by this cam. Like the muscle cars of yesteryear, this cam yields a sound that will make lesser cars clear a path out of your way at lights.
Adjustable Cam Gears. Maximize the power from your new camshafts with a set of Adjustable Cam Gears, which will allow you the ability to fine tune your camshaft timing - a critical necessity when doing mods that can change your camshaft-to-crankshaft centerline position. Please see drop down option above.
Application. These Comp Cams Stage 3 Xtreme Energy XE270AH Camshafts are designed to be used on the 1997-2010 4.6L 2-Valve (2V) and 1997-2003 5.4L F-150s that are equipped with Performance Improvement (PI) Heads, 3.55 or steeper rear gears and a 2000 plus stall speed converter on automatic transmissions. Recommended for use with 4.6 two valve V8 F-150s with intake, exhaust, custom tuned computer, and valve spring upgrades.
Fitment:
- 1997 Ford F-150
- 1998 Ford F-150
- 1999 Ford F-150
- 2000 Ford F-150
- 2001 Ford F-150
- 2002 Ford F-150
- 2003 Ford F-150
- 2004 Ford F-150
- 2005 Ford F-150
- 2006 Ford F-150
- 2007 Ford F-150
- 2008 Ford F-150
- 2009 Ford F-150
- 2010 Ford F-150
Comp Cams 102600
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
Hardware included:- (2) COMP Cams Camshafts
Tech Specs
Comp Cam Data Sheet
| Part Number: | 102600 | Grind Number: | XE270AH |
| Lifter Type: | None - OHC | Engine Type: | FORD 4.6 and 5.4 SOHC MODULAR 2-V (1992-Present) |
| RPM Range: | 1800 to 5800 | Valve Timing : | 0.05 |
| Lobe-Center Angle | 113 | Intake Center Line: | 109 |
| Intake | Exhaust | |
| Valve Lash: | Hyd. | Hyd. |
| Duration: | 270 | 274 |
| Duration @ .050" Lift: | 234 | 238 |
| Valve Lift: | 0.55 | 0.55 |
| Lobe Lift: | 0.3 | 0.3 |
| Valve Timing @ 0.05" Lift: | Open | Close |
| Intake: | 8 BTDC | 46 ABDC |
| Exhaust: | 56 BBDC | 2 ATDC |
5.0
Reviews of Comp Cams Engine Products (3)
Reviews of Comp Cams Engine products have an average rating of 5.0 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 4.6L V8 - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10
- 5.4L V8 - 97, 98, 99, 00, 01, 02, 03
- 5.4L V8 Supercharged - 99, 00, 01, 02, 03
