Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 9,500 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 195.4:1 Gear Ratio
- 94ft Bright Orange Synthetic Rope Included
- Wired Remote Switch with 12-Foot Lead
- Durable Black Powder Coat Finish
- Hook, Hawse Fairlead and Cover are Included
- Overall Dimensions 21.1" x 6.3" x 8.6"
- Mounting Bolt Pattern 254mm x 114.3mm
- Weight: 44 lbs.
- Fits All 1999-2025 Silverados
Description

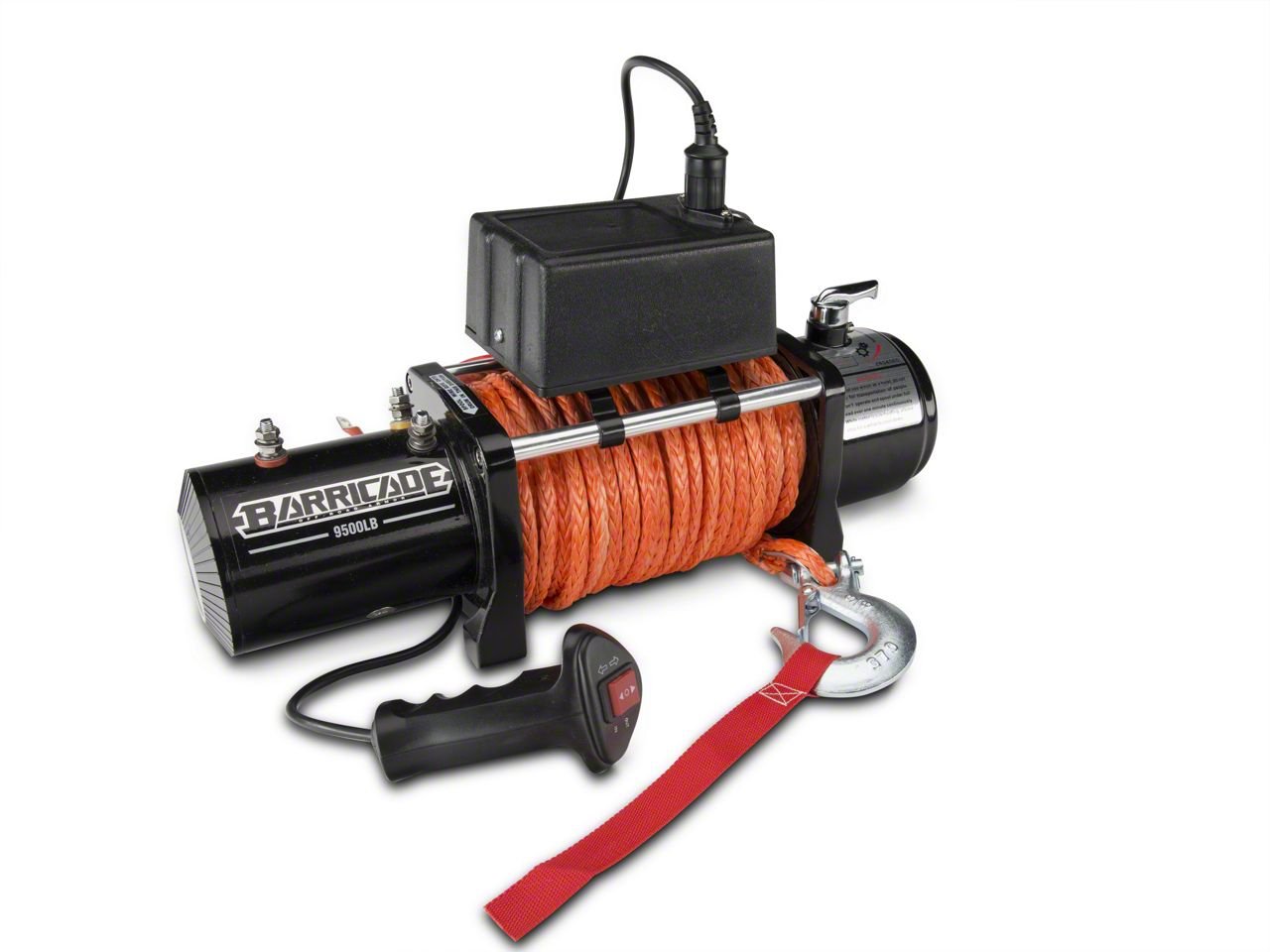

Reliable Recovery System. Get out of the messiest situations by using the Barricade 9,500 lb. Winch with Synthetic Rope. You'll be prepared for what the trail might throw at you with this reliable, heavy-duty winch. When you're not using this winch, protect it from dust and debris with the stylish cover featuring Barricade's signature logo.
Heavy Duty 9500 LB. Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs. of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-On Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. There should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500 lb. Winch with Synthetic Rope is designed for use on all 1999-2025 Chevy Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9500 LB. Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs. of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-On Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. There should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500 lb. Winch with Synthetic Rope is designed for use on all 1999-2025 Chevy Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.
- Replacement Hardware – SKU U2404H
Shop All Truck Parts And Accessories
Shop All Truck Winches
Barricade S102663
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9500 lb. Winch
- 94ft Orange Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
- Winch Cover
