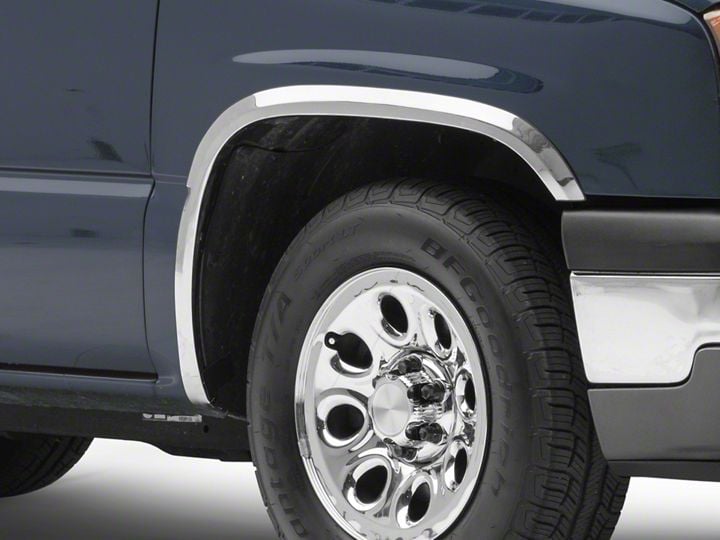

How to Install Carrichs Stainless Steel Fender Trim - Polished on your Silverado

1. Place a correct fender trim (fitment sticker can be found on back of fender trim) over fender to be installed.

2. Slide a “hooked clip” through each slot on fender trim. There are seven (7) clips per rear fender trim.

3. Pull the other end of the clip with a pair of pliers and bend the clip toward the wheel well to secure the fender trim (Fig. 3).

4. Repeat step 1-3 for all seven clips per rear fender trim

1. Place a correct fender trim (fitment sticker can be found on back of fender trim) over fender to be installed.

2. Align fender trim properly onto fender and use 7/64 a bit to drill into fender well using the pre-drilled hole on fender trim for guidance (Fig. 4).

3. Use the provided screws to screw the fender trim to the fender using a phillips screwdriver.

4. Repeat step 1-3 for each and every fender trim.
