Carli Suspension 2.50-Inch Front Backcountry Leveling System with Carli SPEC 2.0 Remote Reservoir Shocks (19-24 4WD 6.7L RAM 3500 w/o Air Ride)Find parts that fit my vehicle

Backcountry Leveling System
From: $2,620.00
Front Lift Height Rear Lift Height
2.5″ 1″

Front Travel Rear Travel
9.5″ 11″

Shock Type Tire Fitment
2.0″ RR (Remote Reservoir) 35″ x 12.5″
Does not work with rear auto-level air suspension.
This system is tuned for the 3500s equipped with rear leaf springs. It will install on the 3500 trucks equipped with the factory auto-leveling air assist but the tuning is NOT refined to the platform. We recommend you measure the truck as it often takes less than 2.5″ of front lift to level the Air-Assist Rams.

Carli SPEC Backcountry Leveling SystemCarli SPEC Backcountry Leveling System
In 2019, Ram lowered the rear of the 3500 SRW - for this reason, we're now providing a 1" Billet Block and U-Bolts to fit the larger AAM 12" Axle (4.25" Axle Tubes). If you have a 19+ DRW, you do not need the 1" block to achieve a level stance - order the 13-18 option, instead.


19-24 RAM 3500 4X4 DIESEL 2.5" LIFT CARLI-SPEC BACKCOUNTRY LEVELING SYSTEM & 1" BLOCK

13-18 RAM 3500 4X4 DIESEL 2.5" LIFT CARLI-SPEC BACKCOUNTRY LEVELING SYSTEM

SKU: CS-DLVL-BC-CS-19-D

Ram 2.5" Backcountry Leveling System, Diesel, Carli-SPEC

2019+ 3500 SRW
2019+ 3500 DRW, use other option (CS-DLVL-BC-CS-19-D) with NO BLOCK

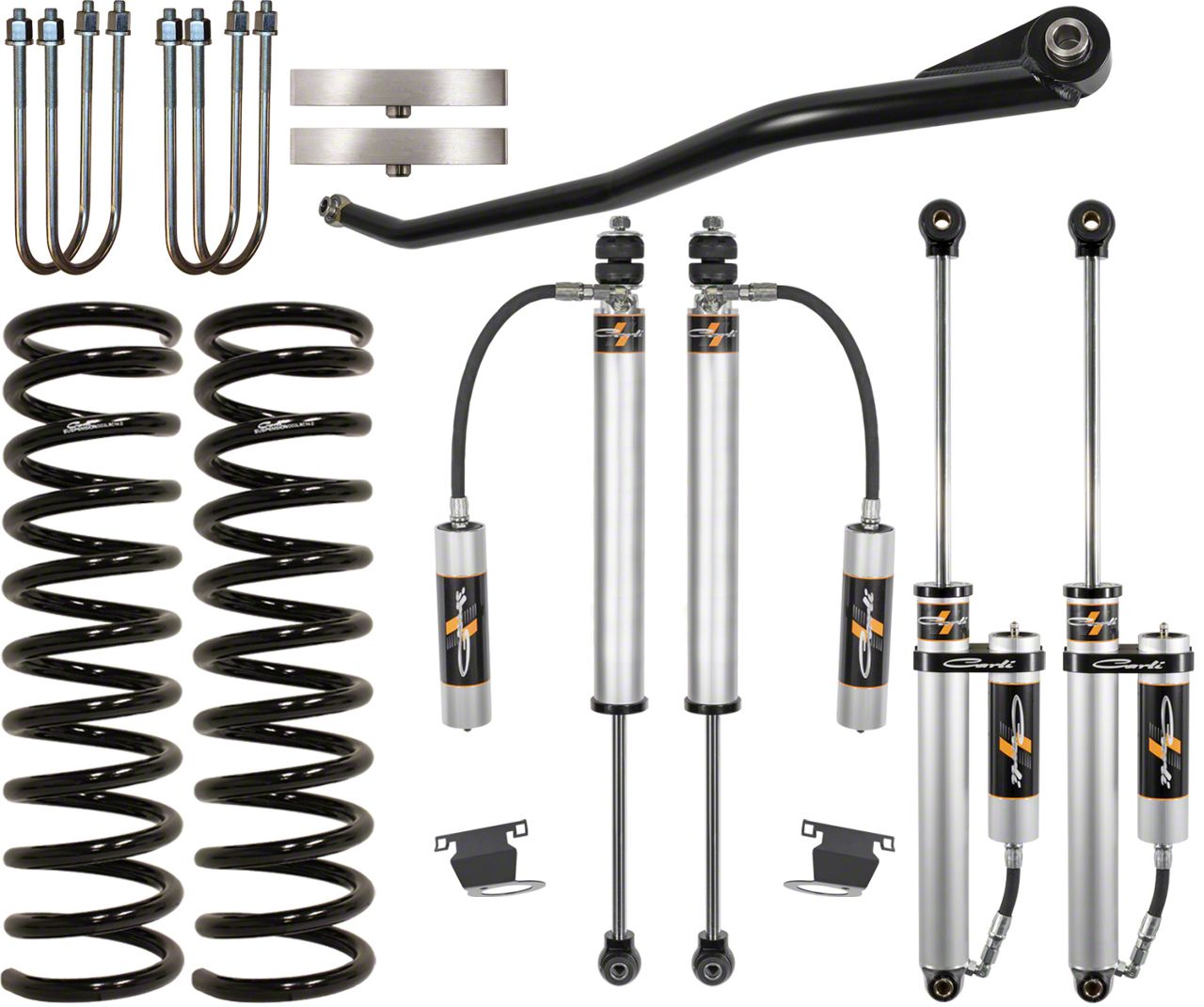

Base Kit Includes:

CS-DLRC-14-LVL-D Leveling Front Coils
CS-DLVLSPKG-CS20RR-B Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear with Res Mounts
CS-DATB-1419 Adjustable Track Bar
CS-DRBKIT-1-4.25 Billet Rear Lift Block & U-Bolts, 1" Lift

Fitment:

• 2019 Dodge Ram 3500
• 2020 Dodge Ram 3500
• 2021 Dodge Ram 3500
• 2022 Dodge Ram 3500
• 2023 Dodge Ram 3500
• 2024 Dodge Ram 3500

Details
