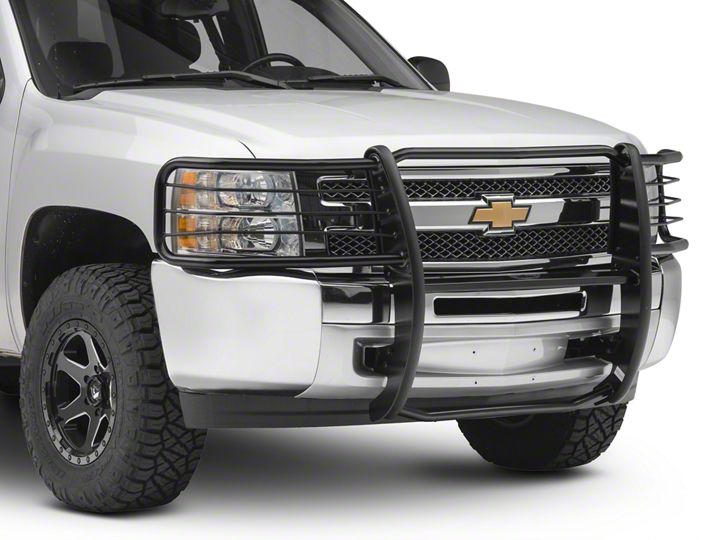

How to Install Black Horse Off Road Grille Guard - Black (07-13 All) on your Chevy Silverado

1. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY. DO NOT ATTEMPT INSTALLATION ALONE; PERSONAL INJURY OR DAMAGE TO THE VEHICLE MAY RESULT. CUTTING IS REQUIRED.

2. Start installation from under the front of the vehicle. Determine if the vehicle is equipped with tow hooks.

a. Vehicles equipped with tow hooks and/or openings in bumper cover: Remove the factory tow hooks, if equipped, (Figure 1). NOTE: This Grille Guard is not compatible with factory tow hooks.

b. Vehicles without tow hooks and no openings in bumper cover: Remove the plastic lower bumper cover. Place bumper cover on a clean, stable work surface, (Figure 2).

3. Locate the (2) holes, side by side, in the forward end of each frame channel. Insert (1) Bolt Plate into the open end of the frame channel and out the rearmost hole in the side of the frame, (Figure 3). Thread (1) 12mm Plastic Retainer onto the threaded end of the Bolt Plate to hold the Bolt Plate in position during Bracket installation, (Figure 4).

a. On the passenger side, the (2) holes are on the outer wall of the frame rail, (Figures 3, 4 & 7A).

b. On the driver side, the (2) holes will be on the inner wall of the frame, (Figure 8B).

4. Select (1) Mounting Bracket and (1) Support Bracket. NOTE, on vehicles with openings in bumper cover, it may be necessary to enlarge the (2) openings in the bumper cover slightly to clear the Mounting Brackets, (Figure 6). Trim cover as required to install Brackets.

a. Passenger/Right side Mounting Bracket installation: Secure the Mounting Bracket to the Bolt Plate with (1) 12mm x 24mm STD Flat Washer and (1) 12mm Nylon Lock Nut. Select (1) Lower Support Bracket. Line up the forward hole in the Support Bracket with the hole in the inner wall of the frame channel. Insert (1) 12mm x 140mm Long Hex Bolt and (1) 12mm x 24mm STD Flat Washer through the Support Bracket, both sides of the frame channel and out the remaining hole in the Mounting Bracket, (Figures 5, 7A & 7B). Secure with the included (1) 12mm x 24mm STD Flat Washer and (1) 12mm Nylon Lock Nut.

Line up the hole in the bottom of the Support Bracket with the lower hole in the Mounting Bracket. Bolt the (2) Brackets together with the included (1) 12mm x 30mm Hex Bolt, (2) 12mm x 24mm STD Flat Washers and (1) 12mm Nylon Lock Nut, (Figures 7A & 7B). Do not fully tighten hardware.

b. Driver/Left side Mounting Bracket installation: Select (1) Lower Support Bracket. Line up the rear hole in the Support Bracket with the previously installed Bolt Plate. Secure the Support Bracket to the Bolt Plate with (1) 12mm x 24mm STD Flat Washer and (1) 12mm Nylon Lock Nut, (Figures 8A & 8B). Do not tighten at this time.  Select (1) Mounting Bracket. Insert (1) 12mm x 140mm Long Hex Bolt and (1) 12mm x 24mm STD Flat Washer through the forward hole in the Support Bracket, both sides of the frame channel and out the forward hole in the Mounting Bracket, (Figures 8A & 8B). Secure the Mounting Bracket with the included (1) 12mm x 24mm STD Flat Washer and (1) 12mm Nylon Lock Nut.  Bolt the bottom of the Support Bracket to the Mounting Bracket as previously described in Step 4a, (Figures 8A & 8B). Do not fully tighten hardware.

5. Next, open the hood and remove the plastic cover between the top of the grille and the radiator. NOTE: Use a small flat head screw driver to pop up the center of the plastic clips. Remove the two outer bolts from the grille shell. Use a pair of “needle nose” pliers to carefully squeeze the back of the clips to release as you gently pull the grill forward, (Figure 9). IMPORTANT: Do not damage the clips holding the grille in place. Once all of the clips have been released, carefully remove the grille by gently pulling it forward from the vehicle

6. Remove the long factory top bumper bracket bolt behind the bumper on the top of the frame. Select the driver side Top Bracket. Apply a layer of Adhesive Backed Foam Tape to the inside of the Bracket to protect the finish on the bumper, (Figure 10). IMPORTANT: To prevent the Top Brackets from damaging the finish on the vehicle during installation, cover the top of the bumper with removable tape, (masking tape). Secure the Top Bracket to the bumper bracket with the factory hex bolt, (Figure 11). Leave the hardware loose at this time. Repeat this Step to install the passenger side Top Bracket.

7. With assistance, hold the Grille Guard up in position on the outside of the Mounting Brackets. Bolt the Grille Guard to the Brackets with (6) 12mm x 30mm Hex Bolts, (12) 12mm x 32mm Large Flat Washers and (6) 12mm Nylon Lock Nuts, (Figures 7A & 8B). Snug but do not tighten hardware at this time.

8. Line up the driver side Top Bracket with the hole in the upright on the Grille Guard. Bolt the Top Bracket to the upright with (1) 10mm Button Head Bolt, (2) 10mm Flat Washers and (1) 10mm Nylon Lock Nut, (Figure 12). Do not tighten hardware at this time. Repeat for passenger side Top Bracket installation.

9. Level and adjust the Grille Guard. Make sure that the Top Brackets do not come in contact with the top of the bumper cover.

a. Vehicles equipped with tow hooks and/or opening in bumper cover: Proceed to tighten all hardware.

b. Vehicles without tow hooks and no openings in bumper cover: Tighten the lower Mounting Bracket hardware only. Temporarily remove the Grille Guard. Hold the lower bumper cover up in position and mark the location of the Mounting Brackets onto the back of the cover. Cut (2) vertical slots through the bumper cover to clear the Brackets. Cut as little as possible from the bumper cover. Reinstall the bumper cover over the Brackets. Reinstall the Grille Guard as described in Steps 7 - 8. Level and adjust the Grille Guard and tighten all hardware at this time.

10. Once all mounting hardware is tight, line up the clips on the grille with the mounting tabs, (Step 5), and gently push the grille back into place. Reinstall the top plastic cover.

11. Do periodic inspections to the installation to make sure that all hardware is secure and tight.

To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish.  For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be used also to clean the Grille Guard.

For gloss black finishes: Mild soap may be used to clean the Grille Guard.
