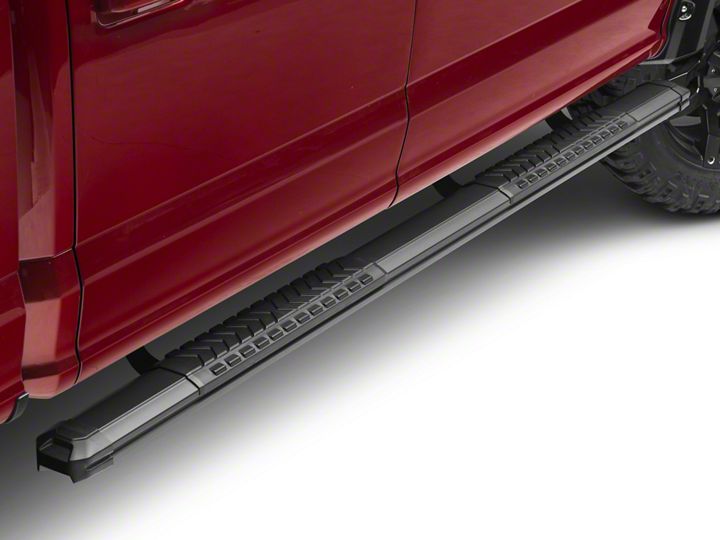

How to Install Black Horse Off Road Cutlass Running Boards - Black (15-17 SuperCab, SuperCrew) on your Ford F-150

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.

1. Start the installation under the passenger side of the vehicle. Locate the front factory running board mounting location along the inner side of the body, (Figure 1).

2. Slide (1) Plastic Washer over each of the (3) factory mounting studs in the body panel, (Figures 2 & 3). IMPORTANT: The Plastic Washers are designed to prevent corrosion between the aluminum body panel and the steel mounting brackets. Do not install the Brackets without the Plastic Washers.

3. Select (1) Mounting Bracket. NOTE: All (6) Brackets are universal and will fit left or right side. Attach the Mounting Bracket to the (3) factory studs with (3) 8mm Flat Washers and (3) 8mm Nylon Lock Nuts, (Figure 4). Snug but do not fully tighten the hardware.

4. Repeat Steps 1-3 to install the center and rear passenger side Brackets.

5. Select the passenger Cutlass. NOTE: Slots in the bottom of the Cutlass are offset toward the vehicle. Use the diagram above to help determine the correct Cutlass.

6. Locate the opening in the end of each of the channels in the bottom of the Cutlass. Slide (3) 8mm T-Bolts into each channel, (Figure 5).

 7. With assistance, carefully position the Cutlass onto the (3) Mounting Brackets. Lift the Cutlass up and slide the T-Bolts along the Cutlass to match up with the Brackets. IMPORTANT: Do not slide the Cutlass on the Brackets, (front to back or rotate), or the finish on the Cutlass may be damaged.

8. Line up the front of the Cutlass approximately 2” back, (or locate as desired), from the front wheel opening. Attach the Cutlass to the Mounting Brackets with (6) 8mm Flat Washers, (6) 8mm Lock Washers and (6) 8mm Hex Nuts, (Figure 6). Do not tighten hardware at this time.

9. Level and adjust the Cutlass properly and tighten all hardware.

10. Repeat Steps 2—9 for the driver Cutlass installation.

11. Do periodic inspections to the installation to make sure that all hardware is secure and tight.

To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish.

For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be used also to clean the Cutlass.

For gloss black finishes: Mild soap may be used to clean the Cutlass.
