Belltech Performance Handling Lowering Kit Plus (15-20 F-150, Excluding Raptor)Find parts that fit my vehicle
Item T542524
$0.00
16 Reviews
Our Price
$2,665.00 kit
Out of Stock
$40.00 Oversized Item Fee
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Greatly Improves Handling Performance
- Lowers Front 1-3 inches; Lowers Rear 4-inches
- Rebound/Compression Adjustable Front Dampener Coilovers
- Premium Quality Rear Shocks
- One Inch Rear Anti-sway Bar and Flip Kit
- Direct-Fit Bolt-On Installation
- Covered By Limited Lifetime Warranty
- Fits 2015-2020 Ford F-150 Models Excluding SVT Raptor
| Brand | Belltech |
| Lowering Kit Includes Shocks | Shocks Included |
| Lowering Kit Estimated Drop | 3.0F / 4.0R |
Description
Customizable Looks and Performance. This Belltech Performance Handling Lowering Kit Plus is designed to increase your F-150’s performance while maintaining premium ride quality. Featuring a customizable front drop of 1-3 inches with adjustable rebound and compression dampers, you can easily fine-tune every setting to meet certain requirements or your own driving preferences. These particular settings can also be changed separately and independently from each other for a truly customized driving experience.
Twin Tube Rear OE/LO Shocks. To make sure that the lowered ground clearance won’t make you suffer from bumpy rides, this Lowering Kit comes with heavy-duty twin tube OE/LO rear shocks. In addition to giving you’re a consistently smooth ride quality, you’ll also be able to experience better handling and maneuverability. The adjustable dampening also helps you fine-tune the shocks to the exact specifications you want.
Front Coilover Kit. Belltech gives you the power to personalize the look of your truck with this Lowering Kit’s adjustable front coilover kit, with lowering heights of 1-3 inches. Apart from a customizable ride height, you’ll also be able to custom adjust compression and rebound. The result is reduced body roll and precision handling in the exact specifications you want, which you can also easily fine-tune whenever you make alterations to your F-150.
Rear Anti-Sway Bar. Apart from the coilover kit, this Lowering Kit also includes a 1-inch rear anti-sway bar for virtually zero body roll. The result is vehicle stability through acceleration, braking, cornering or turning. You’ll also have superior maneuverability and overall better control over your vehicle even at top speeds.
Rear Lowering Shackle Kit and Flip Kit. With this Lowering Kit, you can choose between a rear lowering shackle kit for an adjustable rear drop of up to 3 inches, or a flip kit for a fixed rear drop of 4 inches. Both of these lowering components are made out of premium-grade steel, which means they’ll be able to deliver top-notch performance for a very long time.
Straightforward Installation. All of the components of this Lowering Kit can be directly installed onto your F-150 using the mounting hardware included in the package. The total installation time for all components is approximately 3 to 4 hours.
Comes With a Limited Lifetime Warranty. Belltech’s limited lifetime structural warranty applies to all the lowering components of this kit. The shocks, on the other hand, are covered by a two-year warranty. For any warranty-related questions, kindly get in touch with the manufacturer.
Application. This Belltech Performance Handling Lowering Kit Plus is compatible with 2015-2020 Ford F-150 models excluding the SVT Raptor.
Shop All Truck Parts And Accessories
Shop All Truck Lowering Kits
Shop All Truck Suspension
Fitment:
DetailsBelltech 1001HKP
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

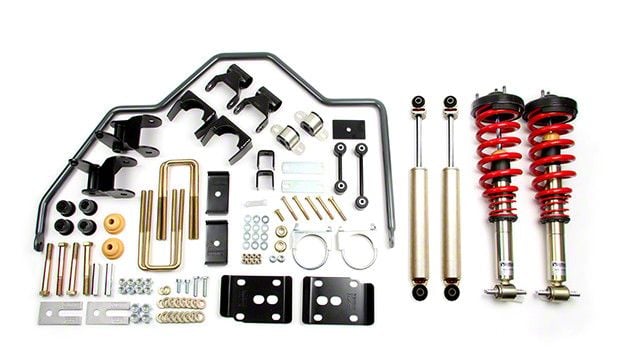

Installation & What's in the Box
Installation Info
What's in the Box
- (1) Set of Rear OE/LO Shocks
- (1) Front Coilover Kit
- (1) Front Anti-Sway Bar
- (1) Rear Lowering Shackle Kit
- (1) Rear Flip Kit
- Mounting Hardware
4.9
Customer Reviews (16)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20
- 3.0L V6 Power-Stroke - 18, 19, 20
- 3.3L V6 - 18, 19, 20
- 3.5L V6 - 15, 16, 17
- 3.5L V6 EcoBoost - 15, 16, 17, 18, 19, 20
- 3.5L V6 EcoBoost Limited - 19, 20
- 3.5L V6 EcoBoost Raptor - 17, 18, 19, 20
- 5.0L V8 - 15, 16, 17, 18, 19, 20
