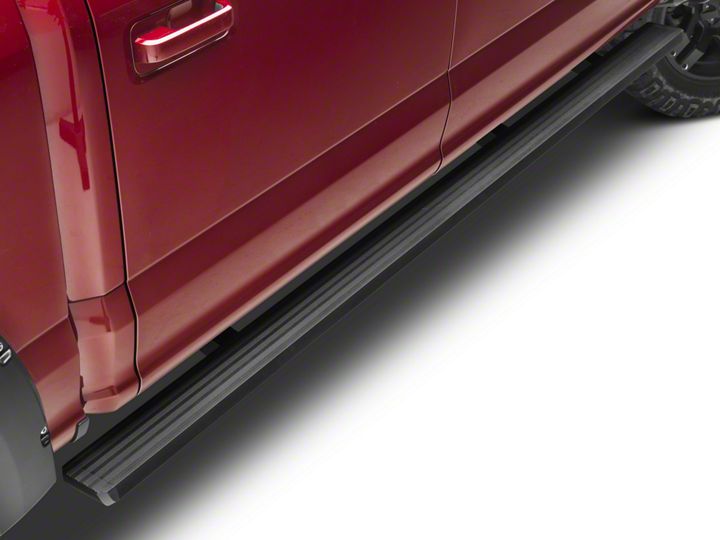

How to Install Barricade Aluminum Running Boards - Black (15-17 SuperCab, SuperCrew) on your Ford F-150

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.

1. Start the installation under the driver/left side of the vehicle. Locate the front factory running board mounting location along the inner side of the body, (Figure 1).

2. Slide (1) Plastic Washer over each factory mounting stud in the body panel, (Figures 2-4). IMPORTANT: The Plastic Washers are designed to prevent corrosion between the aluminum body panel and the steel mounting brackets. Do not install the Brackets without the Plastic Washers.

3. Select (1) Mounting Bracket. NOTE: All (6) Brackets are universal and will fit left or right side. Attach the Mounting Bracket to the (3) factory studs with (3) 8mm Flat Washers and (3) 8mm Nylon Lock Nuts, (Figures 4 & 5). Leave hardware loose at this time.

4. Next, select (1) Plastic Cover and (2) Cover Clips, (Figure 6). Slide the Cover over the top of the Bracket and line up the (2) holes in the cover with the holes in the Bracket. Insert the Cover Clips into the holes. Push the center pin in on each clip until it is flush against the outer ring to expand the clip in the hole, (Figures 6 & 7).

NOTE: Loosen the Bracket if necessary to attach the Cover.

5. Repeat Steps 1-4 to install the (2) remaining center and rear driver side Brackets and Covers.

6. Select (1) Running Board and (6) 6mm T-Bolts. Locate the opening in the end of each of the channels in the bottom of the Running Board. Slide (3) T-Bolts into each channel, (Figure 8).

7. With assistance, carefully position the Running Board onto the (3) Mounting Brackets. Lift the Running Board up and slide the T-Bolts along the channels to line up with the Brackets. IMPORTANT: Do not slide the Running Board on the Brackets, (front to back or rotate), or the finish on the Running Board may be damaged.

8. Line up the front of the Running Board approximately 2” back, (or locate as desired), from the front wheel opening. Attach the Running Board to the Brackets with (6) 6mm Flat Washers, (6) 6mm Lock Washers and (6) 6mm Hex Nuts, (Figure 9). Do not tighten hardware at this time.

9. Level and adjust the Running Board and tighten all hardware.

10. Repeat Steps 1-9 to install the passenger/right side Running Board.

11. Do periodic inspections to the installation to make sure that all hardware is secure and tight.

To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. Mild soap may be used to clean the Running Boards.
