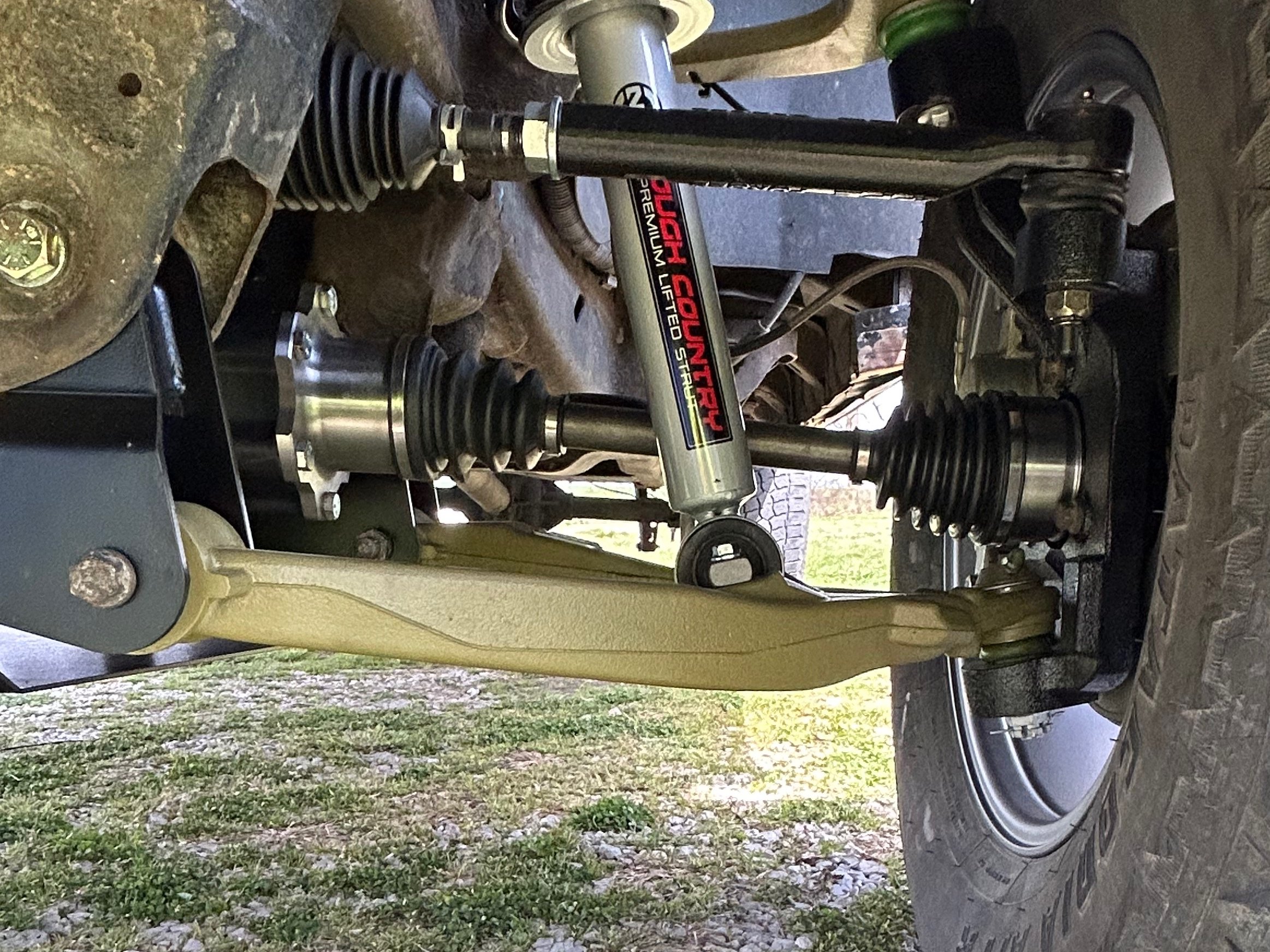

Which Axle Type is Better

Understanding Axle Types: Full-Floating vs. Semi-Floating

When choosing the right axle for your vehicle, especially for those used in more demanding situations such as heavy towing or off-roading, it's essential to understand the difference between full-floating and semi-floating axles. Each type serves a specific purpose and offers distinct advantages based on the vehicle's needs.

Semi-Floating Axles

Semi-floating axles are a common choice for many light to medium duty vehicles, including sport-utilities and half-ton pickups. In this setup:

• The wheel is directly attached to the axle shaft flange.
• A single bearing supports the outer end of the shaft.
• The axle shaft must handle both the vehicle's weight and the driving torque, which can limit its load capacity and durability under extreme conditions.

Related Axle Parts:

• Axle Bearing & Seal Kit for AMC Model 20 Rear, 1-piece Axle Design - $131.89
• Yukon Front 4340 Chrome-Moly Replacement Axle Kit For Dana 30 - $1,159.89
• Yukon Axle U/Joint for Dana 30, 44 & GM 8.5" front - $63.89
• Spin Free Locking Hub Conversion Kit for Dana 30 / Dana 44 - 27 Spline, 5 x 4.5" - $2,299.89
• Alloy USA Axle Lock Kit Dana 30 3"-6" Lift - $193.99

Full-Floating Axles

Full-floating axles are designed to handle heavier loads and are typically found in 3/4-ton HD and 1-ton pickups. Characteristics include:

• The wheel attaches to a hub, which rotates on two large bearings fixed to the axle housing.
• The axle shaft passes through the hub, tasked solely with transmitting torque and not supporting the vehicle's weight.
• This design significantly reduces strain on the axle shaft and increases both the bearing area and overall durability.

Which is Better?

For heavy-duty applications, including carrying large payloads or towing substantial weights, full-floating axles are preferable due to their enhanced durability and ability to handle higher stresses. They are particularly recommended for vehicles in 3/4-ton and larger categories or any vehicle subjected to extreme off-road use.

Additional Considerations: Reverse Cut vs. Standard Cut Axles

• Reverse Cut (Hi-pinion) Axles: Often used in front driving axles due to their strength when the gear operates on the drive side. They offer advantages such as improved ground clearance and driveline angles, making them suitable for short wheelbase vehicles with lifts.
• Standard Cut Axles: Commonly used for front axles where clearance, gear ratio options, cost, or specific suspension setups are a concern.

Reverse cut gears are not interchangeable with standard cut gears due to differing spiral directions and housing designs, which affect lubrication and gear operation.

Conclusion

Choosing the right axle type for your Jeep or off-road vehicle depends significantly on your specific use-case scenarios. For standard applications, semi-floating axles might suffice, but for more rigorous demands such as heavy towing or severe off-roading, full-floating axles are a must. Additionally, considering the type of cut for your axle gears can further optimize your vehicle's performance and durability. Always ensure compatibility when selecting differential cases and other related components.
