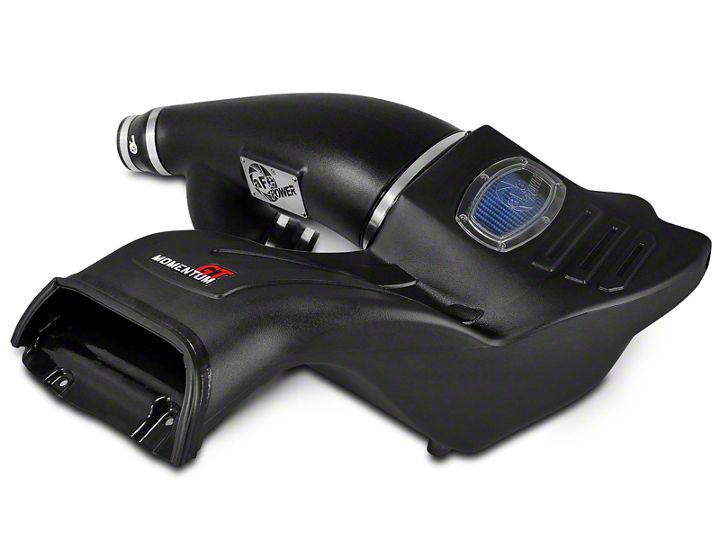

How to Install aFe Momentum GT Pro 5R Cold Air Intake on your F-150

• Please read the entire instruction manual before proceeding.
• Ensure all components listed are present.
• If you are missing any of the components, call customer support at 951-493-7100.
• Ensure you have all necessary tools before proceeding.
• Do not attempt to work on your vehicle when the engine is hot.
• Disconnect the negative battery terminal before proceeding.
• Retain factory parts for future use.

Refer to Figure A for Steps 1-3

Step1: Rotate 1 temperature sensor counter clockwise then pull it out of the tube.
Disconnect the 2 wire harness clip from the air box.

Step 2: Untighten the three 3 clamps on the air intake tube. Pull the tube out of the truck.

Step 3: Remove the screw 4 and the two plastic rivets 5 securing the housing, then pull the factory air box out of the truck

Refer to Figure B for Steps 4-5

Step 4: Transfer the grommet 6 from the factory air box to the aFe air box.

Step 5: Install the furnished seal trim 7 on the top edge of the aFe housing.

Refer to Figure C for Step 6-8

Step 6: Install the aFe housing into the truck by pushing it into the factory mounting grommets.

Step 7: Re-install the factory screw 8 removed in step 3, inside the aFe housing.

Step 8: Secure the housing with the two furnished plastic rivets 9 .

Refer to Figure D for Step 9

Step 9: Slide aFe filter inside the housing and push it in until it locks.​

Refer to Figure E for Step 14

Step 10: Install grommet into hole in aFe tube then push the aluminum fitting in it.

Step 11: Install couplings and clamps onto tube ends. Do not tighten clamps yet.

Refer to Figure F for Steps 12-14

Step 12: Install the aFe tube in the truck by sliding the couplings over the factory tube
then the tube end into aFe filter.

Step 13: Align tube correctly then tighten all clamps.

Step 14: Secure the temperature sensor into the aluminum fitting by turning clockwise.
Clip the harness into the small holes 10 on the aFe housing.

Refer to Figure G for Steps 15

Step 15: Make sure all clamps and screws are tight. Remove plastic film from aFe window.

Your installation is now complete. Thank you for choosing aFePower.
