How to Install AFE Mach Force XP Cat-Back Single Side Exit Exhaust - Black Tips on your F-150

Step 1: (Read Instructions prior to installation) Remove your stock exhaust up to the catalytic converter from the rear of your truck working your way forward. Take caution not to damage the factory band clamp and isolation mounts as they will be reused. It is recommended to not fully tighten the clamps until the entire system has been installed.

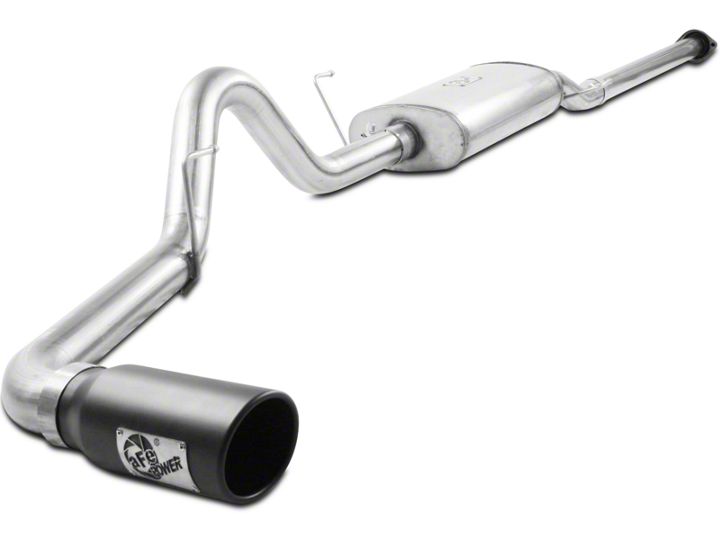

Step 2: For faster installation spread the pieces of the exhaust along side of your vehicle according to the diagram shown.

Step 3: Slip factory band clamp over reduced end of the mid-pipe. Now install the mid-pipe. It will require cutting at the rear end. Cut on the end that is not reduced to fit shorted wheel bases. Test fit prior to cutting. Cut 6" for 144.5" WB, Cut 12" for 138.5" WB, Cut 18” for 132.5" WB and do not cut for 150.5" WB

Step 4: Slip band clamp over expanded end of muffler assembly prior to installation.

Step 5: Utilizing the factory isolation mounts now install over-axle/tailpipe and tighten all band clamps from front to rear.

Step 6: Your installation is now complete. It is recommended to re-tighten all exhaust components after 50-100 miles.

Step 1: (Read Instructions prior to installation) Remove your stock exhaust up to the catalytic converter from the rear of your truck working your way forward. Take caution not to damage the factory band clamp and isolation mounts as they will be
reused. It is recommended to not fully tighten the clamps until the entire system has been installed.

Step 2: For faster installation spread the pieces of the exhaust along side of your vehicle according to the diagram shown.

Step 3: Slip factory band clamp over reduced end of the mid-pipe. Now install the mid-pipe. It will require cutting at the rear end. Cut on the end that is not reduced to fit shorted wheel bases. Test fit prior to cutting. Cut 6" for 144.5" WB, Cut 12" for
138.5" WB, Cut 18” for 132.5" WB and do not cut for 150.5" WB

Step 4: Slip band clamp over expanded end of muffler assembly prior to installation.

Step 5: Utilizing the factory isolation mounts now install over-axle/tailpipe and tighten all band clamps from front to rear.

Step 6: Your installation is now complete. It is recommended to re-tighten all exhaust components after 50-100 miles.
